High quality P6 WIFI/3G/4G Outdoor smart street lighting pole advertising led screen P4 P5 P6 P8 lamp led display panel
The main purpose of the light pole led display is to replace the light box on the poles. At present the double side light box in market can play maximum two ads and customer groups need to change the ads every few months, it’s a severe limitation for advertising industry. But the light pole led display doesn’t have the problem because make advertising emissions without limitation, in this way it increases the utilization rate of light pole ads position. In other hand, light box can only show a print ad by an image but the light pole screen can play dynamic video advertising which is more attractive and illustrative than a picture.
Street light pole led display has advantages of small screen size for high space utilization, can be designed as simultaneously control for mass screen numbers via internet broadcast technology. They can be mounted the light poles of a certain street and create a scale effect in the area for road guide, traffic broadcasts, information release as well as advertising promotion and so on.
Product Feature:
1,High brightness,easy installation.
2, Energy saving,Easy maintenance.
3, Advanced dot adjusting.
4, 3G,4G ,USB.CLOUD,WIFI control.
5. Customized cabinet size/color/shape according to the client requirements.
P6 Outdoor Full Color LED display Module(192mm*192mm):
Outdoor IP65 Waterproof Iron Cabinet(single side or double side):
Cabinet Size and shape can be customized!!!
| No | Item | Parameter |
| 1 | Pixel Pitch | 6 mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | LED Lamp | Full color |
| 4 | Density | 27777dot/m2 |
| 5 | Module Size | 192*192mm |
| 6 | Module Thickness | 17mm |
| 7 | Module Weight | 370g |
| 8 | Port Type | HUB-75D/B |
| 9 | Cabinet Size | Customized |
| 10 | Brightness | ≥6500cd/m² |
| 11 | View Angle | ≥120°(Vertical),≥140°(Horizontal) |
| 12 | Best View Distance | 6-100m |
| 13 | Frame Frequency | ≥60Hz |
| 14 | Refresh Rate | ≥1920Hz |
| 15 | Scan Mode | 1/8Scan |
| 16 | Lifespan | >100,000(Hrs) |
| 17 | Max. power consumption | 950W/m2 |
| 18 | Ave. power consumption | 320W/m2 |
| 19 | Operation Temperature | -25℃~+50℃ |
| 20 | Working Humidity | 10%~98%RH |
| 21 | Storage Temperature | -40℃~+80℃ |
| 22 | Working Voltage | 100~240V |
| 23 | IP Grade | IP65 |
Cluster management can be achieved using internet, Wi-Fi and 3G/4G. This makes controlling each pole LED display screen individually. Change the display content seamlessly and show the adverts you want to display.
Installation Diagram(from side or back):

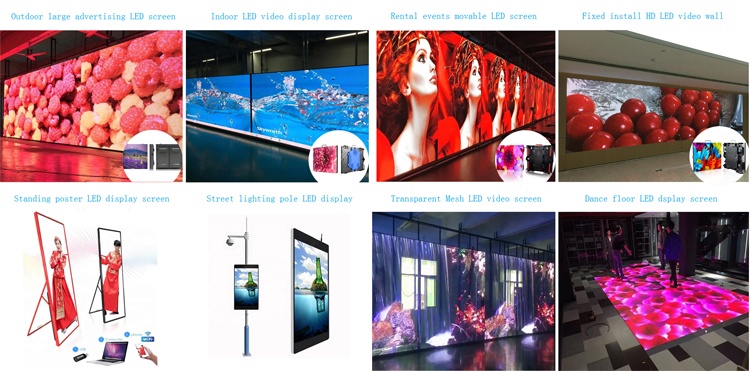

Product Applications:
We support Air transportation, Sea shipping, Land transportation, Express(door to door)—DHL/UPS/TNT ect.
High quality P6 WIFI/3G/4G Outdoor smart street lighting pole advertising led screen P4 P5 P6 P8 lamp led display panel
If any interest or question about this product, welcome to contact me at anytime!
